新产品

PFC 整流器工艺在30V~400V产品已经成熟，并且量产多种封装及各种电流规格。
30V~60V 电压范围，主要推广MOS Rectifier。
80V~150V 相对高压范围，使用独特的SLVF制程制造多款电力电子整流器。
200V~400V 高压应用范围，PFC量产的金属氧化物整流器，能提升客户电源的效率，简化电路架构，并能降低零件发热。

► 金属氧化物整流器MOS Rectifior
► SLVF萧特基整流器SLVF/HPTR

金属氧化物整流器及SLVF萧特基流器有三种VF级别可提供:
(1) 标准VF (2) 较低VF (3) 超低VF

PFC制造之整流器相比一般平面萧特基整流器的优势:
(1) VF特低 (2) IR特低 (3) 能抵御更大反向冲击电流 (4) 极高结温，耐热性较高

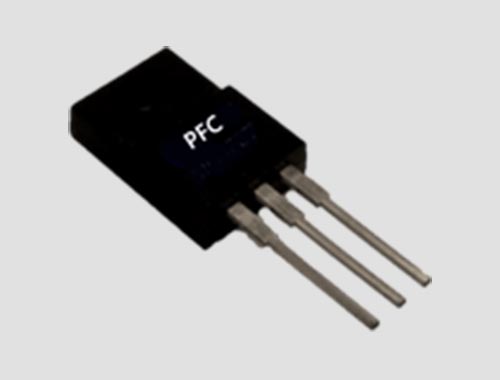

金属氧化物整流器

由CMOS结构组成，并以CMOS积体电路工艺制造。有三种VF级别可提供:

SLVF萧特基整流器/HPTR

SLVF 其结合了超低VF及快速开关，并优化了耐压，可应用于80V~120V的反向电压 SLVF萧特基整流器(HPTR ™ /SLVF ™ )相较于一般萧特基的优势:

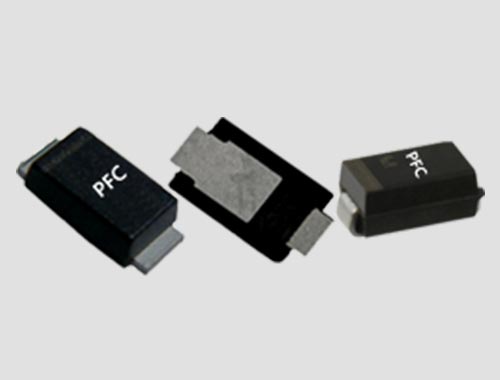

SMAF-A

PFC新开发SMAF-A封装型态产品，针对手机充电器及网通电源应用需要开发的高散热能力封装。

Product Name
Product Name	Type AND OR MOS Schottky Planar Schottky SLVF Schottky	VF Level AND OR L V S A H M	Die AND OR 1 2	IF (A) AND OR 16 32 30 40 60 15 20 3 5 10 120 12 8 80 2	VB (V) AND OR 400 300 200 150 120 100 80 60 50 45 40 30	VF(V) 25℃ AND OR 0.94 0.89 0.96 0.92 1.02 0.86 0.83 0.95 0.85 0.9 0.82 0.87 1.1 0.93 0.88 0.98 1.36 0.78 0.81 1.2 1.5 1.4 1.04 1 0.84 0.79 0.77 1.25 1.14 0.8 0.73 1.12 0.74 0.76 0.68 0.97 0.7 0.67 0.71 0.65 0.62 0.66 0.63 0.64 0.72 0.61 0.69 0.75 0.6 0.58 0.55 0.56 0.53 0.52 0.48 0.51 0.54 0.49 0.5 0.47 0.46 0.44 0.45 0.42	IR(uA) 25℃ AND OR 10 100 200 50 500 300 150 1000 220	VF(V) 125℃ AND OR 2 30 20 10 10 @100℃ -- 100 45 40 50 25 18 15 35 70 22 @100℃ 15 @100℃ 25 60 75 @100℃ 10 50 @100℃ @100℃ 40 @100℃ 30 20 @100℃ 150	Package AND OR TO-262AA TO-263AB TO-220AB ITO-220AB TO-247AB TO-277 SMA SMAF-A SMB DO-201AD TO-251 TO-252 TO-263AA DO-15 DO-41	IFSM(A) AND OR 350 250 280 220 180 150 50 120 80 275 200 100 300 600 160 140 130 320 450 40 240 30 260 400 90	Tj (℃) AND OR -55~175 -65~175 -65~150 -55~150 -40~150 -45~150 -55~125 -65~125 -55~155	Download
PFR16L400SI	MOS Schottky	L	1	16	400	0.94	10	2	TO-262AA	350	-55~175
PFR16L400SB	MOS Schottky	L	1	16	400	0.94	10	2	TO-263AB	350	-55~175
PFR32L400CT	MOS Schottky	L	2	32	400	0.94	10	2	TO-220AB	350	-55~175
PFR32L400CTF	MOS Schottky	L	2	32	400	0.94	10	2	ITO-220AB	350	-55~175
PFR32L400CTI	MOS Schottky	L	2	32	400	0.94	10	2	TO-262AA	350	-55~175
PFR32L400CTB	MOS Schottky	L	2	32	400	0.94	10	2	TO-263AB	350	-55~175
PFR30L300CTB	MOS Schottky	L	2	30	300	0.94	100	30	TO-263AB	250	-65~175
PFR30V300CTB	MOS Schottky	V	2	30	300	0.89	100	20	TO-263AB	280	-65~175
PFR40L300CTF	MOS Schottky	L	2	40	300	0.94	200	20	ITO-220AB	280	-65~175
PFR40V300CTF	MOS Schottky	V	2	40	300	0.89	100	20	ITO-220AB	350	-65~175
PFR40L300CT	MOS Schottky	L	2	40	300	0.94	200	20	TO-220AB	280	-65~175
PFR40V300CT	MOS Schottky	V	2	40	300	0.89	100	20	TO-220AB	350	-65~175
PFR40V300PT	MOS Schottky	V	2	40	300	0.89	100	20	TO-247AB	350	-65~175
PFR40L300CTI	MOS Schottky	L	2	40	300	0.94	200	20	TO-262AA	280	-65~175
PFR40V300CTI	MOS Schottky	V	2	40	300	0.89	100	20	TO-262AA	350	-65~175
PFR40L300CTB	MOS Schottky	L	2	40	300	0.94	200	20	TO-263AB	280	-65~175
PFR40V300CTB	MOS Schottky	V	2	40	300	0.89	100	20	TO-263AB	350	-65~175
PFR60L300CTF	MOS Schottky	L	2	60	300	0.96	100	20	ITO-220AB	350	-65~175
PFR60L300CT	MOS Schottky	L	2	60	300	0.96	100	20	TO-220AB	350	-65~175
PFR60L300PT	MOS Schottky	L	2	60	300	0.96	200	20	TO-247AB	350	-65~175
PFR60L300PT-L	MOS Schottky	L	2	60	300	0.96	200	20	TO-247AB	350	-65~175
PFR60L300CTI	MOS Schottky	L	2	60	300	0.96	100	20	TO-262AA	350	-65~175
PFR60L300CTB	MOS Schottky	L	2	60	300	0.96	100	20	TO-263AB	350	-65~175
PFR15L400SP	MOS Schottky	L	1	15	400	0.96	100	10	TO-277	220	-65~150
PFR16L400S	MOS Schottky	L	1	16	400	0.94	10	2	TO-220AB	350	-55~175
PFR16L400SF	MOS Schottky	L	1	16	400	0.94	10	2	ITO-220AB	350	-55~175
PFR20L300CTF	MOS Schottky	L	2	20	300	0.94	100	20	ITO-220AB	180	-65~175
PFR20V300CTF	MOS Schottky	V	2	20	300	0.89	100	30	ITO-220AB	180	-65~175
PFR20L300CT	MOS Schottky	L	2	20	300	0.94	100	20	TO-220AB	180	-65~175
PFR20300CT	MOS Schottky	S	2	20	300	0.96	100	10	TO-220AB	150	-65~175
PFR20V300CT	MOS Schottky	V	2	20	300	0.89	100	30	TO-220AB	180	-65~175
PFR20L300CTI	MOS Schottky	L	2	20	300	0.94	100	20	TO-262AA	180	-65~175
PFR20300CTF	MOS Schottky	S	2	20	300	0.96	100	10	TO-262AA	150	-65~175
PFR20300CTI	MOS Schottky	S	2	20	300	0.96	100	10	TO-262AA	150	-65~175
PFR20V300CTI	MOS Schottky	V	2	20	300	0.89	100	30	TO-262AA	180	-65~175
PFR20L300CTB	MOS Schottky	L	2	20	300	0.94	100	20	TO-263AB	180	-65~175
PFR20300CTB	MOS Schottky	S	2	20	300	0.96	100	10	TO-263AB	150	-65~175
PFR20V300CTB	MOS Schottky	V	2	20	300	0.89	100	30	TO-263AB	180	-65~175
PFR30L300CTF	MOS Schottky	L	2	30	300	0.94	100	30	ITO-220AB	250	-65~175
PFR30V300CTF	MOS Schottky	V	2	30	300	0.89	100	20	ITO-220AB	280	-65~175
PFR30L300CT	MOS Schottky	L	2	30	300	0.94	100	30	TO-220AB	250	-65~175
PFR30V300CT	MOS Schottky	V	2	30	300	0.89	100	20	TO-220AB	280	-65~175
PFR30L300PT	MOS Schottky	L	2	30	300	0.94	200	30	TO-247AB	250	-65~175
PFR30V300PT	MOS Schottky	V	2	30	300	0.89	100	20	TO-247AB	280	-65~175
PFR30L300CTI	MOS Schottky	L	2	30	300	0.94	100	30	TO-262AA	250	-65~175
PFR30V300CTI	MOS Schottky	V	2	30	300	0.89	100	20	TO-262AA	280	-65~175
PFR60L200CTI	MOS Schottky	L	2	60	200	0.94	100	20	TO-262AA	350	-65~175
PFR60L200CTB	MOS Schottky	L	2	60	200	0.94	100	20	TO-263AB	350	-65~175
P3L300A	MOS Schottky	L	1	3	300	0.92	100	20	SMA	50	-65~150
P3L300F-A	MOS Schottky	L	1	3	300	0.92	100	20	SMAF-A	50	-65~175
P3L300B	MOS Schottky	L	1	3	300	0.92	100	20	SMB	50	-65~175
PFS5L300	MOS Schottky	L	1	5	300	0.89	50	20	DO-201AD	150	-65~175
P5300A	MOS Schottky	S	1	5	300	1.02	100	20	SMA	50	-65~150
P5300F-A	MOS Schottky	S	1	5	300	1.02	100	20	SMAF-A	50	-65~175
PFR10L300CTF	MOS Schottky	L	2	10	300	0.92	100	10	ITO-220AB	150	-65~175
PFR10V300CTF	MOS Schottky	V	2	10	300	0.89	100	10	ITO-220AB	180	-65~175
PFR10L300CT	MOS Schottky	L	2	10	300	0.92	100	10	TO-220AB	150	-65~175
PFR10V300CT	MOS Schottky	V	2	10	300	0.89	100	10	TO-220AB	180	-65~175
P10L300SP	MOS Schottky	L	1	10	300	0.92	50	10	TO-277	180	-65~150
P10L300E	MOS Schottky	L	2	10	300	0.92	100	10	TO-251	120	-65~175
P10L300D	MOS Schottky	L	2	10	300	0.92	100	10	TO-252	120	-65~175
PFR10L300CTI	MOS Schottky	L	2	10	300	0.92	100	10	TO-262AA	150	-65~175
PFR10V300CTI	MOS Schottky	V	2	10	300	0.89	100	10	TO-262AA	180	-65~175
PFR10L300CTB	MOS Schottky	L	2	10	300	0.92	100	10	TO-263AB	150	-65~175
PFR10V300CTB	MOS Schottky	V	2	10	300	0.89	100	10	TO-263AB	180	-65~175
PFR40200CT	MOS Schottky	S	2	40	200	0.92	100	20	TO-220AB	250	-65~175
PFR40200CTI	MOS Schottky	S	2	40	200	0.92	100	20	TO-263AA	250	-65~175
PFR40200CTB	MOS Schottky	S	2	40	200	0.92	100	20	TO-263AB	250	-65~175
PFR40200PT	MOS Schottky	S	2	40	200	0.92	100	20	TO-247AB	250	-65~175
PFR40200PT-L	MOS Schottky	S	2	40	200	0.92	100	20	TO-247AB	250	-65~175
PFR40L200CTF	MOS Schottky	L	2	40	200	0.89	100	20	ITO-220AB	280	-65~175
PFR40V200CTF	MOS Schottky	V	2	40	200	0.86	100	20	ITO-220AB	350	-65~175
PFR40L200CT	MOS Schottky	L	2	40	200	0.89	100	20	TO-220AB	280	-65~175
PFR40V200CT	MOS Schottky	V	2	40	200	0.86	100	20	TO-220AB	350	-65~175
PFR40V200PT	MOS Schottky	V	2	40	200	0.86	100	20	TO-247AB	350	-65~175
PFR40L200CTI	MOS Schottky	L	2	40	200	0.89	100	20	TO-262AA	280	-65~175
PFR40V200CTI	MOS Schottky	V	2	40	200	0.86	100	20	TO-262AA	350	-65~175
PFR40L200CTB	MOS Schottky	L	2	40	200	0.89	100	20	TO-263AB	280	-65~175
PFR40V200CTB	MOS Schottky	V	2	40	200	0.86	100	20	TO-263AB	350	-65~175
PFR40L200PT	MOS Schottky	L	2	40	200	0.89	100	20	TO-247AB	280	-65~175
PFR40L200PT-L	MOS Schottky	L	2	40	200	0.89	100	20	TO-247AB	280	-65~175
PFR60L200CTF	MOS Schottky	L	2	60	200	0.94	100	20	ITO-220AB	350	-65~175
PFR60L200CT	MOS Schottky	L	2	60	200	0.94	100	20	TO-220AB	350	-65~175
PFR60L200PT	MOS Schottky	L	2	60	200	0.94	200	20	TO-247AB	350	-65~175
PFR60L200PT-L	MOS Schottky	L	2	60	200	0.94	200	20	TO-247AB	350	-65~175
PFR20V200CTI	MOS Schottky	V	2	20	200	0.83	100	30	TO-262AA	250	-65~175
PFR20L200CTB	MOS Schottky	L	2	20	200	0.86	100	10	TO-263AB	180	-65~175
PFR20200CTB	MOS Schottky	S	2	20	200	0.95	100	10	TO-263AB	150	-65~175
PFR20V200CTB	MOS Schottky	V	2	20	200	0.83	100	30	TO-263AB	250	-65~175
PFR30200CTF	MOS Schottky	S	2	30	200	0.92	100	10	ITO-220AB	180	-65~175
PFR30200CT	MOS Schottky	S	2	30	200	0.92	100	10	TO-220AB	180	-65~175
PFR30200CTI	MOS Schottky	S	2	30	200	0.92	100	10	TO-262AA	180	-65~175
PFR30200CTB	MOS Schottky	S	2	30	200	0.92	100	10	TO-263AB	180	-65~175
PFR30L200CTF	MOS Schottky	L	2	30	200	0.89	100	30	ITO-220AB	250	-65~175
PFR30V200CTF	MOS Schottky	V	2	30	200	0.85	100	20	ITO-220AB	280	-65~175
PFR30L200CT	MOS Schottky	L	2	30	200	0.89	100	30	TO-220AB	250	-65~175
PFR30V200CT	MOS Schottky	V	2	30	200	0.85	100	20	TO-220AB	280	-65~175
PFR30V200PT	MOS Schottky	V	2	30	200	0.85	100	20	TO-247AB	280	-65~175
PFR30L200CTI	MOS Schottky	L	2	30	200	0.89	100	30	TO-262AA	250	-65~175
PFR30V200CTI	MOS Schottky	V	2	30	200	0.85	100	20	TO-262AA	280	-65~175
PFR30L200CTB	MOS Schottky	L	2	30	200	0.89	100	30	TO-263AB	250	-65~175
PFR30V200CTB	MOS Schottky	V	2	30	200	0.85	100	20	TO-263AB	280	-65~175
PFR30L200PT	MOS Schottky	L	2	30	200	0.89	100	30	TO-247AB	250	-65~175
PFR30L200PT-L	MOS Schottky	L	2	30	200	0.89	100	30	TO-247AB	250	-65~175
PFR40200CTF	MOS Schottky	S	2	40	200	0.92	100	20	ITO-220AB	250	-65~175
P10200D	MOS Schottky	S	2	10	200	0.9	100	10	TO-252	80	-65~175
PFR10L200CTI	MOS Schottky	L	2	10	200	0.86	100	10	TO-262AA	150	-65~175
PFR10200CTI	MOS Schottky	S	2	10	200	0.9	100	10	TO-262AA	120	-65~175
PFR10V200CTI	MOS Schottky	V	2	10	200	0.82	100	10	TO-262AA	150	-65~175
PFR10L200CTB	MOS Schottky	L	2	10	200	0.86	100	10	TO-263AB	150	-65~175
PFR10200CTB	MOS Schottky	S	2	10	200	0.9	100	10	TO-263AB	120	-65~175
PFR10V200CTB	MOS Schottky	V	2	10	200	0.82	100	10	TO-263AB	150	-65~175
P10L200SP	MOS Schottky	L	1	10	200	0.86	100	10	TO-277	275	-65~150
PFR20L200CTF	MOS Schottky	L	2	20	200	0.86	100	10	ITO-220AB	180	-65~175
PFR20200CTF	MOS Schottky	S	2	20	200	0.95	100	10	ITO-220AB	150	-65~175
PFR20V200CTF	MOS Schottky	V	2	20	200	0.83	100	30	ITO-220AB	250	-65~175
PFR20L200CT	MOS Schottky	L	2	20	200	0.86	100	10	TO-220AB	180	-65~175
PFR20200CT	MOS Schottky	S	2	20	200	0.95	100	10	TO-220AB	150	-65~175
PFR20V200CT	MOS Schottky	V	2	20	200	0.83	100	30	TO-220AB	250	-65~175
PFR20200PT	MOS Schottky	S	2	20	200	0.89	100	10	TO-247AB	200	-65~175
P20200D	MOS Schottky	S	2	20	200	0.95	100	10	TO-252	100	-65~175
PFR20L200PT	MOS Schottky	L	2	20	200	0.86	100	10	TO-247AB	200	-65~175
PFR20L200PT-L	MOS Schottky	L	2	20	200	0.86	100	10	TO-247AB	200	-65~175
PFR20L200CTI	MOS Schottky	L	2	20	200	0.86	100	10	TO-262AA	180	-65~175
PFR20200CTI	MOS Schottky	S	2	20	200	0.95	100	10	TO-262AA	150	-65~175
P3L200A	MOS Schottky	L	1	3	200	0.9	100	20	SMA	50	-65~150
P3L200F-A	MOS Schottky	L	1	3	200	0.9	100	20	SMAF-A	50	-65~175
P3L200B	MOS Schottky	L	1	3	200	0.9	100	20	SMB	50	-65~175
PFS5L200	MOS Schottky	L	1	5	200	0.89	100	10	DO-201AD	150	-65~175
SR5200H	Planar Schottky	S	1	5	200	0.95	500	10 @100℃	DO-201AD	120	-55~150
P5200A	MOS Schottky	S	1	5	200	0.95	100	20	SMA	50	-65~150
P5200F-A	MOS Schottky	S	1	5	200	0.95	100	20	SMAF-A	50	-65~175
P5L200B	MOS Schottky	L	1	5	200	0.89	100	20	SMB	120	-65~175
P5L200SP	MOS Schottky	L	1	5	200	0.87	100	20	TO-277	100	-65~150
P10200DS	MOS Schottky	L	1	10	200	0.95	100	10	TO-252	120	-65~175
PFR10L200CTF	MOS Schottky	L	2	10	200	0.86	100	10	ITO-220AB	150	-65~175
PFR10200CTF	MOS Schottky	S	2	10	200	0.9	100	10	ITO-220AB	120	-65~175
PFR10V200CTF	MOS Schottky	V	2	10	200	0.82	100	10	ITO-220AB	150	-65~175
PFR10L200CT	MOS Schottky	L	2	10	200	0.86	100	10	TO-220AB	150	-65~175
PFR10200CT	MOS Schottky	S	2	10	200	0.9	100	10	TO-220AB	120	-65~175
PFR10V200CT	MOS Schottky	V	2	10	200	0.82	100	10	TO-220AB	150	-65~175
P10L200E	MOS Schottky	L	2	10	200	0.86	100	10	TO-251	100	-65~175
P10L200D	MOS Schottky	L	2	10	200	0.86	100	10	TO-252	100	-65~175
P10200E	MOS Schottky	S	2	10	200	0.9	100	10	TO-251	80	-65~175
P20200E	MOS Schottky	S	2	20	200	0.95	100	10	TO-251	100	-65~175
PFR40L150CTI	MOS Schottky	L	2	40	150	0.87	100	20	TO-262AA	250	-65~175
PFR40150CTI	MOS Schottky	S	2	40	150	0.9	100	10	TO-262AA	250	-65~175
PTR40150CTI	SLVF Schottky	S	2	40	150	1.1	100	--	TO-262AA	200	-65~150
PFR40L150CTB	MOS Schottky	L	2	40	150	0.87	100	20	TO-263AB	250	-65~175
PFR40150CTB	MOS Schottky	S	2	40	150	0.9	100	10	TO-263AB	250	-65~175
PTR40150CTB	SLVF Schottky	S	2	40	150	1.1	100	--	TO-263AB	200	-65~150
PFR60150CTF	MOS Schottky	S	2	60	150	0.93	100	20	ITO-220AB	250	-65~175
PFR60150CT	MOS Schottky	S	2	60	150	0.93	100	20	TO-220AB	250	-65~175
PFR60150CTI	MOS Schottky	S	2	60	150	0.93	100	20	TO-262AA	250	-65~175
PFR60150CTB	MOS Schottky	S	2	60	150	0.93	100	20	TO-263AB	250	-65~175
PFR60150PT	MOS Schottky	S	2	60	150	0.93	100	20	TO-263AB	250	-65~175
PFR60150PT-L	MOS Schottky	S	2	60	150	0.93	100	20	TO-263AB	250	-65~175
PFR60L150CTF	MOS Schottky	L	2	60	150	0.9	100	20	ITO-220AB	300	-65~175
PFR60L150CT	MOS Schottky	L	2	60	150	0.9	100	20	TO-220AB	300	-65~175
PFR60L150CTI	MOS Schottky	L	2	60	150	0.9	100	20	TO-262AA	300	-65~175
PFR60L150CTB	MOS Schottky	L	2	60	150	0.9	100	20	TO-263AB	300	-65~175
PFR60L150PT	MOS Schottky	L	2	60	150	0.9	100	20	TO-220AB	350	-65~175
PFR60L150PT-L	MOS Schottky	L	2	60	150	0.9	100	20	TO-220AB	350	-65~175
PFR120L150PT-L	MOS Schottky	V	2	120	150	0.88	100	10	TO-247AB	600	-65~175
PFB3L200	MOS Schottky	L	1	3	200	0.9	100	20	DO-15	50	-40~150
PTR30L150CT	SLVF Schottky	L	2	30	150	0.98	100	--	TO-220AB	200	-65~150
PFR30150CT	MOS Schottky	S	2	30	150	0.89	100	10	TO-220AB	180	-65~175
PTR30A150CTI	SLVF Schottky	A	2	30	150	1.36	100	100	TO-262AA	120	-55~150
PFR30L150CTI	MOS Schottky	L	2	30	150	0.88	100	10	TO-262AA	250	-65~175
PTR30L150CTI	SLVF Schottky	L	2	30	150	0.98	100	--	TO-262AA	200	-65~150
PFR30150CTI	MOS Schottky	S	2	30	150	0.89	100	10	TO-262AA	180	-65~175
PTR30A150CTB	SLVF Schottky	A	2	30	150	1.36	100	100	TO-263AB	120	-55~150
PFR30L150CTB	MOS Schottky	L	2	30	150	0.88	100	10	TO-263AB	250	-65~175
PFR30150CTB	MOS Schottky	S	2	30	150	0.89	100	10	TO-263AB	180	-65~175
PFR30V150CTF	MOS Schottky	V	2	30	150	0.83	100	20	ITO-220AB	250	-65~175
PFR30V150CT	MOS Schottky	V	2	30	150	0.83	100	20	TO-220AB	250	-65~175
PFR30V150CTI	MOS Schottky	V	2	30	150	0.83	100	20	TO-262AA	250	-65~175
PFR30V150CTB	MOS Schottky	V	2	30	150	0.83	100	20	TO-263AB	250	-65~175
PTR30L150CTB	SLVF Schottky	L	2	30	150	0.98	100	--	TO-263AB	200	-65~150
PFR40L150CTF	MOS Schottky	L	2	40	150	0.87	100	20	ITO-220AB	250	-65~175
PFR40150CTF	MOS Schottky	S	2	40	150	0.9	100	10	ITO-220AB	250	-65~175
PTR40150CTF	SLVF Schottky	S	2	40	150	1.1	100	--	ITO-220AB	200	-65~150
PFR40L150CT	MOS Schottky	L	2	40	150	0.87	100	20	TO-220AB	250	-65~175
PFR40150CT	MOS Schottky	S	2	40	150	0.9	100	10	TO-220AB	250	-65~175
PTR40150CT	SLVF Schottky	S	2	40	150	1.1	100	--	TO-220AB	200	-65~150
PFR20V150CTI	MOS Schottky	V	2	20	150	0.78	100	30	TO-262AA	250	-65~175
PTR20H150CTB	SLVF Schottky	H	2	20	150	1.1	100	100	TO-263AB	120	-65~150
PFR20L150CTB	MOS Schottky	L	2	20	150	0.81	100	10	TO-263AB	180	-65~175
PFR20150CTB	MOS Schottky	S	2	20	150	0.88	100	10	TO-263AB	150	-65~175
PFR20V150CTB	MOS Schottky	V	2	20	150	0.78	100	30	TO-263AB	250	-65~175
PT20A150SP	SLVF Schottky	A	1	20	150	1.2	100	100	TO-277	180	-40~150
PT20150E	SLVF Schottky	S	2	20	150	1.5	100	-	TO-251	80	-40~150
PT20150D	SLVF Schottky	S	2	20	150	1.5	100	-	TO-252	80	-40~150
PT20H150E	SLVF Schottky	H	2	20	150	1.1	100	-	TO-251	120	-40~150
PT20H150D	SLVF Schottky	H	2	20	150	1.1	100	-	TO-252	120	-40~150
PT20A150E	SLVF Schottky	A	2	20	150	1.36	100	-	TO-251	120	-40~150
PT20A150D	SLVF Schottky	A	2	20	150	1.36	100	-	TO-252	120	-40~150
PFR30150PT	MOS Schottky	S	2	30	150	0.89	100	10	TO-247AB	180	-65~175
PFR30150PT-L	MOS Schottky	S	2	30	150	0.89	100	10	TO-247AB	180	-65~175
PTR30A150CTF	SLVF Schottky	A	2	30	150	1.36	100	100	ITO-220AB	120	-55~150
PFR30L150CTF	MOS Schottky	L	2	30	150	0.88	100	10	ITO-220AB	250	-65~175
PTR30L150CTF	SLVF Schottky	L	2	30	150	0.98	100	--	ITO-220AB	200	-65~150
PFR30150CTF	MOS Schottky	S	2	30	150	0.89	100	10	ITO-220AB	180	-65~175
PTR30A150CT	SLVF Schottky	A	2	30	150	1.36	100	100	TO-220AB	120	-65~150
PFR30L150CT	MOS Schottky	L	2	30	150	0.88	100	10	TO-220AB	250	-65~175
P10L150SP	MOS Schottky	L	1	10	150	0.83	100	10	TO-277	180	-65~150
PT15A150SP	SLVF Schottky	A	1	15	150	1.4	100	100	TO-277	100	-40~150
PT15H150SP	SLVF Schottky	H	1	15	150	1.04	100	100	TO-277	180	-40~150
PTR20150CTF	SLVF Schottky	S	2	20	150	1.5	100	-	ITO-220AB	80	-65~150
PTR20150CT	SLVF Schottky	S	2	20	150	1.5	100	-	TO-220AB	80	-65~150
PTR20150CTI	SLVF Schottky	S	2	20	150	1.5	100	-	TO-262AA	80	-65~150
PTR20150CTB	SLVF Schottky	S	2	20	150	1.5	100	-	TO-263AB	80	-65~150
PTR20H150CTF	SLVF Schottky	H	2	20	150	1.1	100	100	ITO-220AB	120	-65~150
PFR20L150CTF	MOS Schottky	L	2	20	150	0.81	100	10	ITO-220AB	180	-65~175
PFR20150CTF	MOS Schottky	S	2	20	150	0.88	100	10	ITO-220AB	150	-65~175
PFR20V150CTF	MOS Schottky	V	2	20	150	0.78	100	30	ITO-220AB	250	-65~175
PTR20H150CT	SLVF Schottky	H	2	20	150	1.1	100	100	TO-220AB	120	-65~150
PFR20L150CT	MOS Schottky	L	2	20	150	0.81	100	10	TO-220AB	180	-65~175
PFR20150CT	MOS Schottky	S	2	20	150	0.88	100	10	TO-220AB	150	-65~175
PFR20V150CT	MOS Schottky	V	2	20	150	0.78	100	30	TO-220AB	250	-65~175
P20150E	MOS Schottky	S	2	20	150	0.88	100	10	TO-251	100	-65~175
P20150D	MOS Schottky	S	2	20	150	0.88	100	10	TO-252	100	-65~175
PTR20H150CTI	SLVF Schottky	H	2	20	150	1.1	100	100	TO-262AA	120	-65~150
PFR20L150CTI	MOS Schottky	L	2	20	150	0.81	100	10	TO-262AA	180	-65~175
PFR20150CTI	MOS Schottky	S	2	20	150	0.88	100	10	TO-262AA	150	-65~175
PTR10A150CTI	SLVF Schottky	A	2	10	150	1	100	-	TO-262AA	80	-65~150
PTR10A150CTB	SLVF Schottky	A	2	10	150	1	100	-	TO-263AB	80	-65~150
PFR10L150CTF	MOS Schottky	L	2	10	150	0.84	100	10	ITO-220AB	150	-65~175
PFR10150CTF	MOS Schottky	S	2	10	150	0.88	100	10	ITO-220AB	120	-65~175
PFR10V150CTF	MOS Schottky	V	2	10	150	0.79	100	10	ITO-220AB	180	-65~175
PFR10L150CT	MOS Schottky	L	2	10	150	0.84	100	10	TO-220AB	150	-65~175
PFR10150CT	MOS Schottky	S	2	10	150	0.88	100	10	TO-220AB	120	-65~175
PFR10V150CT	MOS Schottky	V	2	10	150	0.79	100	10	TO-220AB	180	-65~175
P10150E	MOS Schottky	S	2	10	150	0.88	100	10	TO-251	80	-65~175
P10150D	MOS Schottky	S	2	10	150	0.84	100	10	TO-252	80	-65~175
P10L150E	MOS Schottky	L	2	10	150	0.84	100	10	TO-251	100	-65~175
P10L150D	MOS Schottky	L	2	10	150	0.88	100	10	TO-252	100	-65~175
PFR10L150CTI	MOS Schottky	L	2	10	150	0.84	100	10	TO-262AA	150	-65~175
PFR10150CTI	MOS Schottky	S	2	10	150	0.88	100	10	TO-262AA	120	-65~175
PFR10V150CTI	MOS Schottky	V	2	10	150	0.79	100	10	TO-262AA	180	-65~175
PFR10L150CTB	MOS Schottky	L	2	10	150	0.84	100	10	TO-263AB	150	-65~175
PFR10150CTB	MOS Schottky	S	2	10	150	0.88	100	10	TO-263AB	120	-65~175
PFR10V150CTB	MOS Schottky	V	2	10	150	0.79	100	10	TO-263AB	180	-65~175
P20150DS	MOS Schottky	S	1	20	150	0.95	100	10	TO-252	160	-65~150
PT10H150SP	SLVF Schottky	H	1	10	150	1.1	100	100	TO-277	100	-40~150
PTR40V120CTB	SLVF Schottky	V	2	40	120	0.77	300	45	TO-263AB	250	-40~150
PTR60L120CTF	SLVF Schottky	L	2	60	120	0.92	200	40	ITO-220AB	300	-40~150
PTR60L120CT	SLVF Schottky	L	2	60	120	0.92	200	40	TO-220AB	300	-40~150
PTR60L120CTI	SLVF Schottky	L	2	60	120	0.92	200	40	TO-262AA	300	-40~150
PTR60L120CTB	SLVF Schottky	L	2	60	120	0.92	200	40	TO-263AB	300	-40~150
PTR60L120PT	SLVF Schottky	L	2	60	120	0.92	200	40	TO-263AB	300	-40~150
P3L150A	MOS Schottky	L	1	3	150	0.88	100	20	SMA	50	-65~150
P3L150F-A	MOS Schottky	L	1	3	150	0.88	100	20	SMAF-A	50	-65~175
PFS5L150	MOS Schottky	L	1	5	150	0.86	100	20	DO-201AD	150	-65~150
SR5150H	Planar Schottky	S	1	5	150	0.92	500	10 @100℃	DO-201AD	120	-55~150
P5150A	MOS Schottky	S	1	5	150	0.93	100	20	SMA	50	-65~150
P5150F-A	MOS Schottky	S	1	5	150	0.93	100	20	SMAF-A	50	-65~175
P5L150B	MOS Schottky	L	1	5	150	0.84	100	20	SMB	120	-65~175
P5L150DS	MOS Schottky	L	1	5	150	0.84	100	10	TO-252	80	-65~175
PT5A150SP	SLVF Schottky	A	1	5	150	1	100	-	TO-277	80	-40~150
P5L150SP	MOS Schottky	L	1	5	150	0.84	100	20	TO-277	100	-65~150
PT10A150E	SLVF Schottky	A	2	10	150	1	100	-	ITO-220AB	80	-65~150
PT10A150D	SLVF Schottky	A	2	10	150	1	100	-	ITO-220AB	80	-65~150
PTR10A150CTF	SLVF Schottky	A	2	10	150	1	100	-	ITO-220AB	80	-65~150
PTR10A150CT	SLVF Schottky	A	2	10	150	1	100	-	TO-220AB	80	-65~150
PTR30L120SI	SLVF Schottky	L	1	30	120	1.25	300	45	TO-262AA	220	-40~150
PTR30120CTI	SLVF Schottky	S	2	30	120	1.14	200	30	TO-262AA	120	-40~150
PTR30V120CTI	SLVF Schottky	V	2	30	120	0.85	300	50	TO-262AA	250	-40~150
PTR30A120CTB	SLVF Schottky	A	2	30	120	1	200	30	TO-263AB	160	-40~150
PTR30L120CTB	SLVF Schottky	L	2	30	120	0.92	200	45	TO-263AB	200	-40~150
PTR30L120SB	SLVF Schottky	L	1	30	120	1.25	300	45	TO-263AB	220	-40~150
PTR30120CTB	SLVF Schottky	S	2	30	120	1.14	200	30	TO-263AB	120	-40~150
PTR30V120CTB	SLVF Schottky	V	2	30	120	0.85	300	50	TO-263AB	250	-40~150
PT30L120SP	SLVF Schottky	L	1	30	120	0.88	150	45	TO-277	300	-40~150
PTR40L120CTF	SLVF Schottky	L	2	40	120	0.8	300	45	ITO-220AB	250	-40~150
PTR40120CTF	SLVF Schottky	S	2	40	120	1	200	45	ITO-220AB	200	-40~150
PTR40V120CTF	SLVF Schottky	V	2	40	120	0.77	300	45	ITO-220AB	250	-40~150
PTR40L120CT	SLVF Schottky	L	2	40	120	0.8	300	45	TO-220AB	250	-40~150
PTR40120CT	SLVF Schottky	S	2	40	120	1	200	45	TO-220AB	200	-40~150
PTR40V120CT	SLVF Schottky	V	2	40	120	0.77	300	45	TO-220AB	250	-40~150
PTR40L120CTI	SLVF Schottky	L	2	40	120	0.8	300	45	TO-262AA	250	-40~150
PTR40120CTI	SLVF Schottky	S	2	40	120	1	200	45	TO-262AA	200	-40~150
PTR40V120CTI	SLVF Schottky	V	2	40	120	0.77	300	45	TO-262AA	250	-40~150
PTR40L120CTB	SLVF Schottky	L	2	40	120	0.8	300	45	TO-263AB	250	-40~150
PTR40120CTB	SLVF Schottky	S	2	40	120	1	200	45	TO-263AB	200	-40~150
PTR20120CTI	SLVF Schottky	S	2	20	120	1.1	100	25	TO-262AA	150	-40~150
PTR20V120CTI	SLVF Schottky	V	2	20	120	0.73	100	40	TO-262AA	200	-40~150
PTR20H120CTB	SLVF Schottky	H	2	20	120	0.83	200	30	TO-263AB	160	-40~150
PTR20L120CTB	SLVF Schottky	L	2	20	120	0.9	200	40	TO-263AB	120	-40~150
PTR20L120SB	SLVF Schottky	L	1	20	120	1.12	300	30	TO-263AB	250	-40~150
PTR20120CTB	SLVF Schottky	S	2	20	120	1.1	100	25	TO-263AB	150	-40~150
PTR20V120CTB	SLVF Schottky	V	2	20	120	0.73	100	40	TO-263AB	200	-40~150
PT20L120SP	SLVF Schottky	L	1	20	120	0.82	300	45	TO-277	250	-40~150
PTR30A120CTF	SLVF Schottky	A	2	30	120	1	200	30	ITO-220AB	160	-40~150
PTR30L120CTF	SLVF Schottky	L	2	30	120	0.92	200	45	ITO-220AB	200	-40~150
PTR30L120SF	SLVF Schottky	L	1	30	120	1.25	300	45	ITO-220AB	220	-40~150
PTR30120CTF	SLVF Schottky	S	2	30	120	1.14	200	30	ITO-220AB	120	-40~150
PTR30V120CTF	SLVF Schottky	V	2	30	120	0.85	300	50	ITO-220AB	250	-40~150
PTR30A120CT	SLVF Schottky	A	2	30	120	1	200	30	TO-220AB	160	-40~150
PTR30L120CT	SLVF Schottky	L	2	30	120	0.92	200	45	TO-220AB	200	-40~150
PTR30L120S	SLVF Schottky	L	1	30	120	1.25	300	45	TO-220AB	220	-40~150
PTR30120CT	SLVF Schottky	S	2	30	120	1.14	200	30	TO-220AB	120	-40~150
PTR30V120CT	SLVF Schottky	V	2	30	120	0.85	300	50	TO-220AB	250	-40~150
PTR30A120CTI	SLVF Schottky	A	2	30	120	1	200	30	TO-262AA	160	-40~150
PTR30L120CTI	SLVF Schottky	L	2	30	120	0.92	200	45	TO-262AA	200	-40~150
PT10L120SP	SLVF Schottky	L	1	10	120	0.95	200	18	TO-277	140	-40~150
PT10V120SP	SLVF Schottky	V	1	10	120	0.74	200	30	TO-277	180	-40~150
PT12L120SP	SLVF Schottky	L	1	12	120	0.8	300	45	TO-277	150	-40~150
PT15L120SP	SLVF Schottky	L	1	15	120	0.92	200	45	TO-277	180	-40~150
PT15V120SP	SLVF Schottky	V	1	15	120	0.76	300	45	TO-277	250	-40~150
PTR20H120CTF	SLVF Schottky	H	2	20	120	0.83	200	30	ITO-220AB	160	-40~150
PTR20L120CTF	SLVF Schottky	L	2	20	120	0.9	200	40	ITO-220AB	120	-40~150
PTR20L120SF	SLVF Schottky	L	1	20	120	1.12	300	30	ITO-220AB	250	-40~150
PTR20120CTF	SLVF Schottky	S	2	20	120	1.1	100	25	ITO-220AB	150	-40~150
PTR20V120CTF	SLVF Schottky	V	2	20	120	0.73	100	40	ITO-220AB	200	-40~150
PTR20H120CT	SLVF Schottky	H	2	20	120	0.83	200	30	TO-220AB	160	-40~150
PTR20L120CT	SLVF Schottky	L	2	20	120	0.9	200	40	TO-220AB	120	-40~150
PTR20L120S	SLVF Schottky	L	1	20	120	1.12	300	30	TO-220AB	250	-40~150
PTR20120CT	SLVF Schottky	S	2	20	120	1.1	100	25	TO-220AB	150	-40~150
PTR20V120CT	SLVF Schottky	V	2	20	120	0.73	100	40	TO-220AB	200	-40~150
PT20L120E	SLVF Schottky	L	2	20	120	0.88	100	30	TO-251	180	-40~150
PT20L120D	SLVF Schottky	L	2	20	120	0.88	100	30	TO-252	180	-40~150
PTR20H120CTI	SLVF Schottky	H	2	20	120	0.83	200	30	TO-262AA	160	-40~150
PTR20L120CTI	SLVF Schottky	L	2	20	120	0.9	200	40	TO-262AA	120	-40~150
PTR20L120SI	SLVF Schottky	L	1	20	120	1.12	300	30	TO-262AA	250	-40~150
PTS5L120	SLVF Schottky	L	1	5	120	0.74	200	30	DO-201AD	130	-40~150
PTS5V120	SLVF Schottky	V	1	5	120	0.68	200	30	DO-201AD	130	-40~150
PT5L120B	SLVF Schottky	L	1	5	120	0.74	200	15	SMB	100	-40~150
PT5L120SP	SLVF Schottky	L	1	5	120	0.74	200	20	TO-277	100	-40~150
PT8L120SP	SLVF Schottky	L	1	8	120	0.84	200	18	TO-277	140	-40~150
PTS10V120	SLVF Schottky	V	1	10	120	0.83	200	50	DO-201AD	200	-40~150
PTR10L120CTF	SLVF Schottky	L	2	10	120	0.74	100	25	ITO-220AB	150	-40~150
PTR10120CTF	SLVF Schottky	S	2	10	120	0.97	100	15	ITO-220AB	100	-40~150
PTR10V120CTF	SLVF Schottky	V	2	10	120	0.7	50	40	ITO-220AB	120	-40~150
PTR10L120CT	SLVF Schottky	L	2	10	120	0.74	100	25	TO-220AB	150	-40~150
PTR10120CT	SLVF Schottky	S	2	10	120	0.97	100	15	TO-220AB	100	-40~150
PTR10V120CT	SLVF Schottky	V	2	10	120	0.7	50	40	TO-220AB	120	-40~150
PT10L120ES	SLVF Schottky	L	1	10	120	0.9	100	30	TO-251	180	-40~150
PT10L120DS	SLVF Schottky	L	1	10	120	0.9	100	30	TO-252	180	-40~150
PTR10L120CTI	SLVF Schottky	L	2	10	120	0.74	100	25	TO-262AA	150	-40~150
PTR10120CTI	SLVF Schottky	S	2	10	120	0.97	100	15	TO-262AA	100	-40~150
PTR10V120CTI	SLVF Schottky	V	2	10	120	0.7	50	40	TO-262AA	120	-40~150
PTR10L120CTB	SLVF Schottky	L	2	10	120	0.74	100	25	TO-263AB	150	-40~150
PTR10120CTB	SLVF Schottky	S	2	10	120	0.97	100	15	TO-263AB	100	-40~150
PTR10V120CTB	SLVF Schottky	V	2	10	120	0.7	50	40	TO-263AB	120	-40~150
PTR40L100CTI	SLVF Schottky	L	2	40	100	0.73	300	45	TO-262AA	250	-40~150
PTR40100CTI	SLVF Schottky	S	2	40	100	0.81	200	35	TO-262AA	200	-40~150
PTR40V100CTI	SLVF Schottky	V	2	40	100	0.67	500	45	TO-262AA	250	-40~150
PTR40L100CTB	SLVF Schottky	L	2	40	100	0.73	300	45	TO-263AB	250	-40~150
PTR40100CTB	SLVF Schottky	S	2	40	100	0.81	200	35	TO-263AB	200	-40~150
PTR40V100CTB	SLVF Schottky	V	2	40	100	0.67	500	45	TO-263AB	250	-40~150
PTR60L100CTF	SLVF Schottky	L	2	60	100	0.77	300	20	ITO-220AB	320	-40~150
PTR60L100CT	SLVF Schottky	L	2	60	100	0.77	300	20	TO-220AB	320	-40~150
PTR60L100PT	SLVF Schottky	L	2	60	100	0.77	300	20	TO-247AB	320	-65~150
PTR60L100PT-L	SLVF Schottky	L	2	60	100	0.77	300	20	TO-247AB	320	-65~150
PTR60L100CTI	SLVF Schottky	L	2	60	100	0.77	300	20	TO-262AA	320	-40~150
PTR60L100CTB	SLVF Schottky	L	2	60	100	0.77	300	20	TO-263AB	320	-40~150
PTR80L100PT	SLVF Schottky	L	2	80	100	0.84	1000	70	TO-247AB	450	-65~150
PTR80L100PT-L	SLVF Schottky	L	2	80	100	0.84	1000	70	TO-247AB	450	-65~150
PTR80100CTF	SLVF Schottky	S	2	80	100	0.92	300	20	ITO-220AB	320	-40~150
PTR80100CT	SLVF Schottky	S	2	80	100	0.92	300	20	TO-220AB	320	-40~150
PTR80100CTI	SLVF Schottky	S	2	80	100	0.92	300	20	TO-262AA	320	-40~150
PTR80100CTB	SLVF Schottky	S	2	80	100	0.92	300	20	TO-263AB	320	-40~150
PTA2L120	SLVF Schottky	L	1	2	120	0.98	200	30	DO-41	50	-40~150
PT2L120F-A	SLVF Schottky	L	1	2	120	0.95	100	10	SMAF-A	40	-40~150
PTR30L100SI	SLVF Schottky	L	1	30	100	0.9	300	35	TO-262AA	250	-40~150
PTR30100CTI	SLVF Schottky	S	2	30	100	0.82	200	22	TO-262AA	150	-40~150
PTR30V100CTI	SLVF Schottky	V	2	30	100	0.7	300	45	TO-262AA	250	-40~150
PTR30A100CTB	SLVF Schottky	A	2	30	100	0.8	200	30	TO-263AB	180	-40~150
PTR30L100CTB	SLVF Schottky	L	2	30	100	0.78	200	30	TO-263AB	200	-40~150
PTR30L100SB	SLVF Schottky	L	1	30	100	0.9	300	35	TO-263AB	250	-40~150
PTR30100CTB	SLVF Schottky	S	2	30	100	0.82	200	22	TO-263AB	150	-40~150
PTR30V100CTB	SLVF Schottky	V	2	30	100	0.7	300	45	TO-263AB	250	-40~150
PTR40A100CTF	SLVF Schottky	A	2	40	100	0.77	300	45	ITO-220AB	220	-40~150
PTR40A100CT	SLVF Schottky	A	2	40	100	0.77	300	45	TO-220AB	220	-40~150
PTR40A100CTI	SLVF Schottky	A	2	40	100	0.77	300	45	TO-262AA	220	-40~150
PTR40A100CTB	SLVF Schottky	A	2	40	100	0.77	300	45	TO-263AB	220	-40~150
PTR40L100CTF	SLVF Schottky	L	2	40	100	0.73	300	45	ITO-220AB	250	-40~150
PTR40100CTF	SLVF Schottky	S	2	40	100	0.81	200	35	ITO-220AB	200	-40~150
PTR40V100CTF	SLVF Schottky	V	2	40	100	0.67	500	45	ITO-220AB	250	-40~150
PTR40L100CT	SLVF Schottky	L	2	40	100	0.73	300	45	TO-220AB	250	-40~150
PTR40100CT	SLVF Schottky	S	2	40	100	0.81	200	35	TO-220AB	200	-40~150
PTR40V100CT	SLVF Schottky	V	2	40	100	0.67	500	45	TO-220AB	250	-40~150
PTR40L100PT	SLVF Schottky	L	2	40	100	0.73	300	45	TO-247AB	250	-65~150
PTR40100PT	SLVF Schottky	S	2	40	100	0.81	500	45	TO-247AB	350	-40~150
PTR20L100SB	SLVF Schottky	L	1	20	100	0.85	300	30	TO-263AB	250	-40~150
PTR20100CTB	SLVF Schottky	S	2	20	100	0.82	100	25	TO-263AB	150	-40~150
PTR20V100CTB	SLVF Schottky	V	2	20	100	0.67	100	40	TO-263AB	150	-40~150
PT20L100SP	SLVF Schottky	L	1	20	100	0.73	300	45	TO-277	200	-40~150
PTR30A100CTF	SLVF Schottky	A	2	30	100	0.8	200	30	ITO-220AB	180	-40~150
PTR30L100CTF	SLVF Schottky	L	2	30	100	0.78	200	30	ITO-220AB	200	-40~150
PTR30L100SF	SLVF Schottky	L	1	30	100	0.9	300	35	ITO-220AB	250	-40~150
PTR30100CTF	SLVF Schottky	S	2	30	100	0.82	200	22	ITO-220AB	150	-40~150
PTR30V100CTF	SLVF Schottky	V	2	30	100	0.7	300	45	ITO-220AB	250	-40~150
PTR30A100CT	SLVF Schottky	A	2	30	100	0.8	200	30	TO-220AB	180	-40~150
PTR30L100CT	SLVF Schottky	L	2	30	100	0.78	200	30	TO-220AB	200	-40~150
PT30100ES	SLVF Schottky	S	1	30	100	0.92	100	30	TO-251	200	-40~150
PT30100DS	SLVF Schottky	S	1	30	100	0.92	100	30	TO-252	200	-40~150
PTR30L100S	SLVF Schottky	L	1	30	100	0.9	300	35	TO-220AB	250	-40~150
PTR30100CT	SLVF Schottky	S	2	30	100	0.82	200	22	TO-220AB	150	-40~150
PTR30V100CT	SLVF Schottky	V	2	30	100	0.7	300	45	TO-220AB	250	-40~150
PTR30L100PT	SLVF Schottky	L	2	30	100	0.78	200	30	TO-247AB	250	-65~150
PTR30100PT	SLVF Schottky	S	2	30	100	0.93	200	35	TO-247AB	150	-40~150
PTR30A100CTI	SLVF Schottky	A	2	30	100	0.8	200	30	TO-262AA	180	-40~150
PTR30L100CTI	SLVF Schottky	L	2	30	100	0.78	200	30	TO-262AA	200	-40~150
PTR20L100CTF	SLVF Schottky	L	2	20	100	0.79	200	22	ITO-220AB	150	-40~150
PTR20L100SF	SLVF Schottky	L	1	20	100	0.85	300	30	ITO-220AB	250	-40~150
PTR20100CTF	SLVF Schottky	S	2	20	100	0.82	100	25	ITO-220AB	150	-40~150
PTR20V100CTF	SLVF Schottky	V	2	20	100	0.67	100	40	ITO-220AB	150	-40~150
PTR20H100CT	SLVF Schottky	H	2	20	100	0.71	200	30	TO-220AB	180	-40~150
PTR20L100CT	SLVF Schottky	L	2	20	100	0.79	200	22	TO-220AB	150	-40~150
PTR20L100S	SLVF Schottky	L	1	20	100	0.85	300	30	TO-220AB	250	-40~150
PTR20100CT	SLVF Schottky	S	2	20	100	0.82	100	25	TO-220AB	150	-40~150
PTR20V100CT	SLVF Schottky	V	2	20	100	0.67	100	40	TO-220AB	150	-40~150
PT20L100E	SLVF Schottky	L	2	20	100	0.79	100	30	TO-251	180	-40~150
PT20100E	SLVF Schottky	S	2	20	100	0.82	100	25	TO-251	100	-40~150
PT20L100D	SLVF Schottky	L	2	20	100	0.79	100	30	TO-252	180	-40~150
PT20100D	SLVF Schottky	S	2	20	100	0.82	100	25	TO-252	100	-40~150
PTR20H100CTI	SLVF Schottky	H	2	20	100	0.71	200	30	TO-262AA	180	-40~150
PTR20L100CTI	SLVF Schottky	L	2	20	100	0.79	200	22	TO-262AA	150	-40~150
PTR20L100SI	SLVF Schottky	L	1	20	100	0.85	300	30	TO-262AA	250	-40~150
PTR20100CTI	SLVF Schottky	S	2	20	100	0.82	100	25	TO-262AA	150	-40~150
PTR20V100CTI	SLVF Schottky	V	2	20	100	0.67	100	40	TO-262AA	150	-40~150
PTR20H100CTB	SLVF Schottky	H	2	20	100	0.71	200	30	TO-263AB	180	-40~150
PTR20L100CTB	SLVF Schottky	L	2	20	100	0.79	200	22	TO-263AB	150	-40~150
PT10L100E	SLVF Schottky	L	2	10	100	0.65	200	30	TO-251	100	-40~150
PT10100E	SLVF Schottky	S	2	10	100	0.79	100	20	TO-251	100	-40~150
PT10L100DS	SLVF Schottky	L	1	10	100	0.79	100	30	TO-252	180	-40~150
PT10L100D	SLVF Schottky	L	2	10	100	0.65	200	30	TO-252	100	-40~150
PT10100D	SLVF Schottky	S	2	10	100	0.79	100	20	TO-252	100	-40~150
PTR10L100CTI	SLVF Schottky	L	2	10	100	0.67	50	25	TO-262AA	150	-40~150
PTR10100CTI	SLVF Schottky	S	2	10	100	0.79	100	15	TO-262AA	100	-40~150
PTR10V100CTI	SLVF Schottky	V	2	10	100	0.62	50	40	TO-262AA	150	-40~150
PTR10L100CTB	SLVF Schottky	L	2	10	100	0.67	50	25	TO-263AB	150	-40~150
PTR10100CTB	SLVF Schottky	S	2	10	100	0.79	100	15	TO-263AB	100	-40~150
PTR10V100CTB	SLVF Schottky	V	2	10	100	0.62	50	40	TO-263AB	150	-40~150
PT10L100SP	SLVF Schottky	L	1	10	100	0.79	100	20	TO-277	140	-40~150
PT10V100SP	SLVF Schottky	V	1	10	100	0.65	200	30	TO-277	180	-40~150
PT12L100SP	SLVF Schottky	L	1	12	100	0.7	200	18	TO-277	200	-40~150
PTS15L100	SLVF Schottky	V	1	15	100	0.66	220	50	DO-201AD	200	-40~150
PT15L100SP	SLVF Schottky	L	1	15	100	0.78	200	30	TO-277	180	-40~150
PT15V100SP	SLVF Schottky	V	1	15	100	0.66	300	45	TO-277	200	-40~150
PT20L100ES	SLVF Schottky	L	1	20	100	0.81	200	30	TO-251	280	-40~150
PT20L100DS	SLVF Schottky	L	1	20	100	0.81	200	30	TO-252	280	-40~150
PTR20H100CTF	SLVF Schottky	H	2	20	100	0.71	200	30	ITO-220AB	180	-40~150
PT3L100B	SLVF Schottky	L	1	3	100	0.79	200	30	SMB	50	-40~150
PTS5L100	SLVF Schottky	L	1	5	100	0.78	200	15	DO-201AD	130	-40~150
PTS5V100	SLVF Schottky	V	1	5	100	0.63	200	40	DO-201AD	150	-40~150
PT5L100A	SLVF Schottky	L	1	5	100	0.79	200	15	SMA	100	-40~150
PT5L100F-A	SLVF Schottky	L	1	5	100	0.78	200	20	SMAF-A	50	-40~150
PT5L100B	SLVF Schottky	L	1	5	100	0.78	200	@100℃ 15	SMB	100	-40~150
PT5V100B	SLVF Schottky	V	1	5	100	0.64	100	@100℃ 25	SMB	150	-40~150
PT5L100SP	SLVF Schottky	L	1	5	100	0.65	200	30	TO-277	100	-40~150
PT5V100SP	SLVF Schottky	V	1	5	100	0.63	200	30	TO-277	100	-40~150
PT8L100SP	SLVF Schottky	L	1	8	100	0.72	100	10	TO-277	150	-40~150
PTS10L100	SLVF Schottky	L	1	10	100	0.78	100	25	DO-201AD	150	-65~150
PTS10100	SLVF Schottky	S	1	10	100	1.1	300	20	DO-201AD	120	-40~150
PTS10V100	SLVF Schottky	V	1	10	100	0.7	200	50	DO-201AD	200	-40~150
PTR10L100CTF	SLVF Schottky	L	2	10	100	0.67	50	25	ITO-220AB	150	-40~150
PTR10100CTF	SLVF Schottky	S	2	10	100	0.79	100	15	ITO-220AB	100	-40~150
PTR10V100CTF	SLVF Schottky	V	2	10	100	0.62	50	40	ITO-220AB	150	-40~150
PTR10L100CT	SLVF Schottky	L	2	10	100	0.67	50	25	TO-220AB	150	-40~150
PTR10100CT	SLVF Schottky	S	2	10	100	0.79	100	15	TO-220AB	100	-40~150
PTR10V100CT	SLVF Schottky	V	2	10	100	0.62	50	40	TO-220AB	150	-40~150
PT10L100ES	SLVF Schottky	L	1	10	100	0.79	100	30	TO-251	180	-40~150
PTR40L80CT	SLVF Schottky	L	2	40	80	0.66	300	60	TO-220AB	240	-40~150
PTR40L80CTI	SLVF Schottky	L	2	40	80	0.66	300	60	TO-262AA	240	-40~150
PTR40L80CTB	SLVF Schottky	L	2	40	80	0.66	300	60	TO-263AB	240	-40~150
PTR40V80CTF	SLVF Schottky	V	2	40	80	0.61	300	75	ITO-220AB	300	-40~150
PTR40V80CT	SLVF Schottky	V	2	40	80	0.61	300	75	TO-220AB	300	-40~150
PTR40V80CTI	SLVF Schottky	V	2	40	80	0.61	300	75	TO-262AA	300	-40~150
PTR40V80CTB	SLVF Schottky	V	2	40	80	0.61	300	75	TO-263AB	300	-40~150
PTR60L80CTF	SLVF Schottky	L	2	60	80	0.65	300	75	ITO-220AB	300	-40~150
PTR60L80CT	SLVF Schottky	L	2	60	80	0.65	300	75	TO-220AB	300	-40~150
PTR60L80CTI	SLVF Schottky	L	2	60	80	0.65	300	75	TO-262AA	300	-40~150
PTR60L80CTB	SLVF Schottky	L	2	60	80	0.65	300	75	TO-263AB	300	-40~150
PTA2L100	SLVF Schottky	L	1	2	100	0.82	200	30	DO-41	50	-40~150
PT2L100A	SLVF Schottky	L	1	2	100	0.79	100	10	SMA	40	-40~150
PT2L100F-A	SLVF Schottky	L	1	2	100	0.77	100	10	SMAF-A	30	-40~150
PT2L100B	SLVF Schottky	L	1	2	100	0.79	100	@100℃ 10	SMB	40	-40~150
PTB3L100	SLVF Schottky	L	1	3	100	0.78	200	30	DO-15	80	-40~150
PTB3V100	SLVF Schottky	V	1	3	100	0.66	100	15	DO-15	130	-40~150
PTS3V100	SLVF Schottky	V	1	3	100	0.66	100	15	DO-201AD	130	-40~150
PTA3L100	SLVF Schottky	L	1	3	100	0.78	200	30	DO-41	80	-40~150
PT3L100F-A	SLVF Schottky	L	1	3	100	0.76	100	20	SMAF-A	40	-45~150
PT30A80E	SLVF Schottky	L	2	20	80	0.69	300	45	TO-251	150	-40~150
PT30A80D	SLVF Schottky	L	2	20	80	0.69	300	45	TO-252	150	-40~150
PTR30L80CTF	SLVF Schottky	L	2	30	80	0.7	200	30	ITO-220AB	220	-40~150
PTR30L80SF	SLVF Schottky	L	1	30	80	0.75	500	45	ITO-220AB	260	-40~150
PTR30V80CTF	SLVF Schottky	V	2	30	80	0.62	300	75	ITO-220AB	220	-40~150
PTR30L80CT	SLVF Schottky	L	2	30	80	0.7	200	30	TO-220AB	220	-40~150
PTR30L80S	SLVF Schottky	L	1	30	80	0.75	500	45	TO-220AB	260	-40~150
PTR30V80CT	SLVF Schottky	V	2	30	80	0.62	300	75	TO-220AB	220	-40~150
PTR30L80CTI	SLVF Schottky	L	2	30	80	0.7	200	30	TO-262AA	220	-40~150
PTR30L80SI	SLVF Schottky	L	1	30	80	0.75	500	45	TO-262AA	260	-40~150
PTR30V80CTI	SLVF Schottky	V	2	30	80	0.62	300	75	TO-262AA	220	-40~150
PTR30L80CTB	SLVF Schottky	L	2	30	80	0.7	200	30	TO-263AB	220	-40~150
PTR30L80SB	SLVF Schottky	L	1	30	80	0.75	500	45	TO-263AB	260	-40~150
PTR30V80CTB	SLVF Schottky	V	2	30	80	0.62	300	75	TO-263AB	220	-40~150
PT30L80SP	SLVF Schottky	L	1	30	80	0.73	150	100	TO-277	280	-40~150
PTR4080CTF	SLVF Schottky	S	2	40	80	0.71	200	45	ITO-220AB	200	-40~150
PTR4080CT	SLVF Schottky	S	2	40	80	0.71	200	45	TO-220AB	200	-40~150
PTR4080CTI	SLVF Schottky	S	2	40	80	0.71	200	45	TO-262AA	200	-40~150
PTR4080CTB	SLVF Schottky	S	2	40	80	0.71	200	45	TO-263AB	200	-40~150
PTR40L80CTF	SLVF Schottky	L	2	40	80	0.66	300	60	ITO-220AB	200	-40~150
PTR2080CTF	SLVF Schottky	S	2	20	80	0.7	300	30	ITO-220AB	120	-40~150
PTR20V80CTF	SLVF Schottky	V	2	20	80	0.6	300	45	ITO-220AB	220	-40~150
PTR20H80CT	SLVF Schottky	H	2	20	80	0.63	300	30	TO-220AB	200	-40~150
PTR20L80CT	SLVF Schottky	L	2	20	80	0.67	300	20	TO-220AB	150	-40~150
PTR20L80S	SLVF Schottky	L	1	20	80	0.72	300	35	TO-220AB	220	-40~150
PTR2080CT	SLVF Schottky	S	2	20	80	0.7	300	30	TO-220AB	120	-40~150
PTR20V80CT	SLVF Schottky	V	2	20	80	0.6	300	45	TO-220AB	220	-40~150
PT20L80E	SLVF Schottky	L	2	20	80	0.67	300	20	TO-251	180	-40~150
PT20L80D	SLVF Schottky	L	2	20	80	0.67	300	20	TO-252	180	-40~150
PTR20H80CTI	SLVF Schottky	H	2	20	80	0.63	300	30	TO-262AA	200	-40~150
PTR20L80CTI	SLVF Schottky	L	2	20	80	0.67	300	20	TO-262AA	150	-40~150
PTR20L80SI	SLVF Schottky	L	1	20	80	0.72	300	35	TO-262AA	220	-40~150
PTR2080CTI	SLVF Schottky	S	2	20	80	0.7	300	30	TO-262AA	120	-40~150
PTR20V80CTI	SLVF Schottky	V	2	20	80	0.6	300	45	TO-262AA	220	-40~150
PTR20H80CTB	SLVF Schottky	H	2	20	80	0.63	300	30	TO-263AB	200	-40~150
PTR20L80CTB	SLVF Schottky	L	2	20	80	0.67	300	20	TO-263AB	150	-40~150
PTR20L80SB	SLVF Schottky	L	1	20	80	0.72	300	35	TO-263AB	220	-40~150
PTR2080CTB	SLVF Schottky	S	2	20	80	0.7	300	30	TO-263AB	120	-40~150
PTR20V80CTB	SLVF Schottky	V	2	20	80	0.6	300	45	TO-263AB	220	-40~150
PT20L80SP	SLVF Schottky	L	1	20	80	0.66	300	75	TO-277	200	-40~150
PTR10L80S	SLVF Schottky	L	1	10	80	0.7	300	20	TO-220AB	180	-40~150
PTR1080CT	SLVF Schottky	S	2	10	80	0.7	200	15	TO-220AB	80	-40~150
PTR10V80CT	SLVF Schottky	V	2	10	80	0.58	300	30	TO-220AB	180	-40~150
PT10L80ES	SLVF Schottky	L	1	10	80	0.7	300	20	TO-251	150	-40~150
PT10L80DS	SLVF Schottky	L	1	10	80	0.7	300	20	TO-252	150	-40~150
PTR10L80SI	SLVF Schottky	L	1	10	80	0.7	300	20	TO-262AA	180	-40~150
PTR1080CTI	SLVF Schottky	S	2	10	80	0.7	200	15	TO-262AA	80	-40~150
PTR10V80CTI	SLVF Schottky	V	2	10	80	0.58	300	30	TO-262AA	180	-40~150
PTR10L80SB	SLVF Schottky	L	1	10	80	0.7	300	20	TO-263AB	180	-40~150
PTR1080CTB	SLVF Schottky	S	2	10	80	0.7	200	15	TO-263AB	80	-40~150
PTR10V80CTB	SLVF Schottky	V	2	10	80	0.58	300	30	TO-263AB	180	-40~150
PT10L80SP	SLVF Schottky	L	1	10	80	0.67	200	30	TO-277	140	-40~150
PT10V80SP	SLVF Schottky	V	1	10	80	0.6	300	45	TO-277	180	-40~150
PT15L80SP	SLVF Schottky	L	1	15	80	0.7	200	30	TO-277	180	-40~150
PT15V80SP	SLVF Schottky	V	1	15	80	0.6	300	75	TO-277	200	-40~150
PT20L80ES	SLVF Schottky	L	1	20	80	0.72	300	45	TO-251	180	-40~150
PT20L80DS	SLVF Schottky	L	1	20	80	0.72	300	45	TO-252	180	-40~150
PTR20H80CTF	SLVF Schottky	H	2	20	80	0.63	300	30	ITO-220AB	200	-40~150
PTR20L80CTF	SLVF Schottky	L	2	20	80	0.67	300	20	ITO-220AB	150	-40~150
PTR20L80SF	SLVF Schottky	L	1	20	80	0.72	300	35	ITO-220AB	220	-40~150
PFR40L60CTI	MOS Schottky	L	2	40	60	0.65	500	100	TO-262AA	280	-65~150
PFR4060CTI	MOS Schottky	S	2	40	60	0.7	500	100	TO-262AA	250	-65~150
PFR40V60CTI	MOS Schottky	V	2	40	60	0.55	500	100	TO-262AA	400	-65~150
PFR40L60CTB	MOS Schottky	L	2	40	60	0.65	500	100	TO-263AB	280	-65~150
PFR4060CTB	MOS Schottky	S	2	40	60	0.7	500	100	TO-263AB	250	-65~150
PFR40V60CTB	MOS Schottky	V	2	40	60	0.55	500	100	TO-263AB	400	-65~150
PFR60L60CTF	MOS Schottky	L	2	60	60	0.65	500	100	ITO-220AB	350	-65~150
PFR60L60CT	MOS Schottky	L	2	60	60	0.65	500	100	TO-220AB	350	-65~150
PFR60L60PT	MOS Schottky	L	2	60	60	0.65	500	100	TO-247AB	400	-65~150
PFR60L60PT-L	MOS Schottky	L	2	60	60	0.65	500	100	TO-247AB	400	-65~150
PFR6060PT	MOS Schottky	S	2	60	60	0.71	500	100	TO-247AB	280	-65~150
PFR60L60CTI	MOS Schottky	L	2	60	60	0.65	500	100	TO-262AA	350	-65~150
PFR60L60CTB	MOS Schottky	L	2	60	60	0.65	500	100	TO-263AB	350	-65~150
PT2L80F-A	SLVF Schottky	L	1	2	80	0.69	200	30	SMAF-A	30	-40~150
PT3L80A	SLVF Schottky	L	1	3	80	0.67	200	30	SMA	50	-40~150
PT3L80F-A	SLVF Schottky	L	1	3	80	0.67	200	30	SMAF-A	50	-40~150
PTS10V80	SLVF Schottky	V	1	10	80	0.62	200	50	DO-201AD	200	-40~150
PTR10L80SF	SLVF Schottky	L	1	10	80	0.7	300	20	ITO-220AB	180	-40~150
PTR1080CTF	SLVF Schottky	S	2	10	80	0.7	200	15	ITO-220AB	80	-40~150
PTR10V80CTF	SLVF Schottky	V	2	10	80	0.58	300	30	ITO-220AB	180	-40~150
PFR30V60PT	MOS Schottky	V	2	30	60	0.56	500	100	TO-247AB	250	-65~150
PFR30A60CTI	MOS Schottky	A	2	30	60	0.65	500	100	TO-262AA	250	-65~150
PFR30L60CTI	MOS Schottky	L	2	30	60	0.6	500	100	TO-262AA	250	-65~150
PFR3060CTI	MOS Schottky	S	2	30	60	0.7	500	100	TO-262AA	180	-65~150
PFR30V60CTI	MOS Schottky	V	2	30	60	0.56	500	100	TO-262AA	280	-65~150
PFR30A60CTB	MOS Schottky	A	2	30	60	0.65	500	100	TO-263AB	250	-65~150
PFR30L60CTB	MOS Schottky	L	2	30	60	0.6	500	100	TO-263AB	250	-65~150
PFR3060CTB	MOS Schottky	S	2	30	60	0.7	500	100	TO-263AB	180	-65~150
PFR30V60CTB	MOS Schottky	V	2	30	60	0.56	500	100	TO-263AB	280	-65~150
PFR40L60CTF	MOS Schottky	L	2	40	60	0.65	500	100	ITO-220AB	280	-65~150
PFR4060CTF	MOS Schottky	S	2	40	60	0.7	500	100	ITO-220AB	250	-65~150
PFR40V60CTF	MOS Schottky	V	2	40	60	0.55	500	100	ITO-220AB	400	-65~150
PFR40L60CT	MOS Schottky	L	2	40	60	0.65	500	100	TO-220AB	280	-65~150
PFR4060CT	MOS Schottky	S	2	40	60	0.7	500	100	TO-220AB	250	-65~150
PFR40V60CT	MOS Schottky	V	2	40	60	0.55	500	100	TO-220AB	400	-65~150
PFR40L60PT	MOS Schottky	L	2	40	60	0.65	500	100	TO-247AB	280	-65~150
PFR40L60PT-L	MOS Schottky	L	2	40	60	0.65	500	100	TO-247AB	280	-65~150
PFR4060PT	MOS Schottky	S	2	40	60	0.7	500	100	TO-247AB	250	-65~150
PFR4060PT-L	MOS Schottky	S	2	40	60	0.7	500	100	TO-247AB	250	-65~150
PFR40V60PT	MOS Schottky	V	2	40	60	0.55	500	100	TO-247AB	400	-65~150
PFR2060CT	MOS Schottky	S	2	20	60	0.7	500	100	TO-220AB	150	-65~150
PFR20V60CT	MOS Schottky	V	2	20	60	0.53	500	100	TO-220AB	250	-65~150
P2060E	MOS Schottky	S	2	20	60	0.7	500	100	TO-251	120	-40~150
P2060D	MOS Schottky	S	2	20	60	0.7	500	100	TO-252	120	-40~150
PFR20L60CTI	MOS Schottky	L	2	20	60	0.65	500	100	TO-262AA	180	-65~150
PFR2060CTI	MOS Schottky	S	2	20	60	0.7	500	100	TO-262AA	150	-65~150
PFR20V60CTI	MOS Schottky	V	2	20	60	0.53	500	100	TO-262AA	250	-65~150
PFR20L60CTB	MOS Schottky	L	2	20	60	0.65	500	100	TO-263AB	180	-65~150
PFR2060CTB	MOS Schottky	S	2	20	60	0.7	500	100	TO-263AB	150	-65~150
PFR20V60CTB	MOS Schottky	V	2	20	60	0.53	500	100	TO-263AB	250	-65~150
P20L60SP	MOS Schottky	L	1	20	60	0.65	500	100	TO-277	275	-65~150
PFR30A60CTF	MOS Schottky	A	2	30	60	0.65	500	100	ITO-220AB	250	-65~150
PFR30L60CTF	MOS Schottky	L	2	30	60	0.6	500	100	ITO-220AB	250	-65~150
PFR3060CTF	MOS Schottky	S	2	30	60	0.7	500	100	ITO-220AB	180	-65~150
PFR30V60CTF	MOS Schottky	V	2	30	60	0.56	500	100	ITO-220AB	280	-65~150
PFR30A60CT	MOS Schottky	A	2	30	60	0.65	500	100	TO-220AB	250	-65~150
PFR30L60CT	MOS Schottky	L	2	30	60	0.6	500	100	TO-220AB	250	-65~150
PFR3060CT	MOS Schottky	S	2	30	60	0.7	500	100	TO-220AB	180	-65~150
PFR30V60CT	MOS Schottky	V	2	30	60	0.56	500	100	TO-220AB	280	-65~150
PFR3060PT	MOS Schottky	S	2	30	60	0.7	500	100	TO-247AB	180	-65~150
PFR1060CTF	MOS Schottky	S	2	10	60	0.65	500	100	ITO-220AB	90	-65~150
PFR10L60CTF	MOS Schottky	L	2	10	60	0.52	500	100	ITO-220AB	150	-65~150
PFR10V60CTF	MOS Schottky	V	2	10	60	0.48	500	100	ITO-220AB	180	-65~150
PFR1060CT	MOS Schottky	S	2	10	60	0.65	500	100	TO-220AB	90	-65~150
PFR10L60CT	MOS Schottky	L	2	10	60	0.52	500	100	TO-220AB	150	-65~150
PFR10V60CT	MOS Schottky	V	2	10	60	0.48	500	100	TO-220AB	180	-65~150
PFR1060CTI	MOS Schottky	S	2	10	60	0.65	500	100	TO-262AA	90	-65~150
PFR10L60CTI	MOS Schottky	L	2	10	60	0.52	500	100	TO-262AA	150	-65~150
PFR10V60CTI	MOS Schottky	V	2	10	60	0.48	500	100	TO-262AA	180	-65~150
PFR1060CTB	MOS Schottky	S	2	10	60	0.65	500	100	TO-263AB	90	-65~150
PFR10L60CTB	MOS Schottky	L	2	10	60	0.52	500	100	TO-263AB	150	-65~150
PFR10V60CTB	MOS Schottky	V	2	10	60	0.48	500	100	TO-263AB	180	-65~150
P10L60SP	MOS Schottky	L	1	10	60	0.65	500	100	TO-277	160	-65~150
P10V60SP	MOS Schottky	V	1	10	60	0.51	500	100	TO-277	275	-65~150
P15L60SP	MOS Schottky	L	1	15	60	0.6	500	100	TO-277	275	-65~150
P15V60SP	MOS Schottky	V	1	15	60	0.56	500	100	TO-277	275	-65~150
PFR20L60CTF	MOS Schottky	L	2	20	60	0.65	500	100	ITO-220AB	180	-65~150
PFR2060CTF	MOS Schottky	S	2	20	60	0.7	500	100	ITO-220AB	150	-65~150
PFR20V60CTF	MOS Schottky	V	2	20	60	0.53	500	100	ITO-220AB	250	-65~150
PFR20L60CT	MOS Schottky	L	2	20	60	0.65	500	100	TO-220AB	180	-65~150
PFR30L50CT	MOS Schottky	L	2	30	50	0.54	500	100	TO-220AB	250	-65~150
PFR30L50CTI	MOS Schottky	L	2	30	50	0.54	500	100	TO-262AA	250	-65~150
PFR30L50CTB	MOS Schottky	L	2	30	50	0.54	500	100	TO-263AB	250	-65~150
SR3L06H	Planar Schottky	L	1	3	60	0.51	500	--	DO-201AD	80	-65~150
SR360H	Planar Schottky	S	1	3	60	0.7	500	--	DO-201AD	80	-55~125
P3L60A	MOS Schottky	L	1	3	60	0.6	500	15	SMA	50	-65~150
P3L60F-A	MOS Schottky	L	1	3	60	0.6	500	15	SMAF-A	50	-65~150
SS36B	Planar Schottky	S	1	3	60	0.7	1000	--	SMB	80	-65~125
PFS5A60	MOS Schottky	A	1	5	60	0.6	500	100	DO-201AD	150	-65~150
PFS5L60	MOS Schottky	L	1	5	60	0.49	500	100	DO-201AD	150	-65~150
SR560H	Planar Schottky	S	1	5	60	0.7	500	50 @100℃	DO-201AD	150	-55~125
PFS560	MOS Schottky	S	1	5	60	0.67	500	100	DO-201AD	100	-65~150
PFS5V60	MOS Schottky	V	1	5	60	0.48	500	100	DO-201AD	200	-65~150
P5L60F-A	MOS Schottky	L	1	5	60	0.6	500	75	SMAF-A	150	-65~150
P5L60B	MOS Schottky	L	1	5	60	0.49	500	100	SMB	150	-65~150
P5L60SP	MOS Schottky	L	1	5	60	0.53	500	100	TO-277	100	-65~150
P8L60SP	MOS Schottky	L	1	8	60	0.61	500	100	TO-277	100	-65~150
PFS10L60	MOS Schottky	L	1	10	60	0.56	500	100	DO-201AD	200	-65~150
P10L60E	MOS Schottky	L	2	10	60	0.52	500	100	TO-251	120	-65~150
P10L60D	MOS Schottky	L	2	10	60	0.52	500	100	TO-252	120	-65~150
PFR40V45CTI	MOS Schottky	V	2	40	45	0.5	500	100	TO-262AA	350	-65~150
PFR40L45CTB	MOS Schottky	L	2	40	45	0.52	500	100	TO-263AB	280	-65~150
PFR4045CTB	MOS Schottky	S	2	40	45	0.64	500	100	TO-263AB	250	-65~150
PFR40V45CTB	MOS Schottky	V	2	40	45	0.5	500	100	TO-263AB	350	-65~150
PFR4045PT-L	MOS Schottky	S	2	40	45	0.64	500	100	TO-247AB	250	-65~150
PFR60L45CTF	MOS Schottky	L	2	60	45	0.6	500	100	ITO-220AB	350	-65~150
PFR60L45CT	MOS Schottky	L	2	60	45	0.6	500	100	TO-220AB	350	-65~150
PFR60L45PT	MOS Schottky	L	2	60	45	0.6	500	100	TO-247AB	350	-65~150
PFR6045PT	MOS Schottky	S	2	60	45	0.68	500	100	TO-247AB	280	-65~150
PFR60L45CTI	MOS Schottky	L	2	60	45	0.6	500	100	TO-262AA	350	-65~150
PFR60L45CTB	MOS Schottky	L	2	60	45	0.6	500	100	TO-263AB	350	-65~150
PFA2V50	MOS Schottky	V	1	2	50	0.5	500	100	DO-41	50	-40~150
P3L50F-A	MOS Schottky	L	1	3	50	0.54	500	100	SMAF-A	50	-65~150
P5L50F-A	MOS Schottky	L	1	5	50	0.53	500	100	SMAF-A	100	-65~150
P10V50SP	MOS Schottky	V	1	10	50	0.48	300	75	TO-277	275	-65~150
P15L50SP	MOS Schottky	L	1	15	50	0.53	500	100	TO-277	275	-65~150
P1550SP	MOS Schottky	S	1	15	50	0.55	500	100	TO-277	275	-65~150
P15V50SP	MOS Schottky	V	1	15	50	0.51	500	100	TO-277	275	-65~150
P20L50SP	MOS Schottky	L	1	20	50	0.6	500	100	TO-277	275	-65~150
PFR30L50CTF	MOS Schottky	L	2	30	50	0.54	500	100	ITO-220AB	250	-65~150
PFR30V45PT	MOS Schottky	V	2	30	45	0.47	500	100	TO-247AB	280	-65~150
PFR30A45CTI	MOS Schottky	A	2	30	45	0.54	500	100	TO-262AA	250	-65~150
PFR30L45CTI	MOS Schottky	L	2	30	45	0.52	500	100	TO-262AA	250	-65~150
PFR3045CTI	MOS Schottky	S	2	30	45	0.55	500	100	TO-262AA	200	-65~150
PFR30V45CTI	MOS Schottky	V	2	30	45	0.47	500	100	TO-262AA	280	-65~150
PFR30A45CTB	MOS Schottky	A	2	30	45	0.54	500	100	TO-263AB	250	-65~150
PFR30L45CTB	MOS Schottky	L	2	30	45	0.52	500	100	TO-263AB	250	-65~150
PFR3045CTB	MOS Schottky	S	2	30	45	0.55	500	100	TO-263AB	200	-65~150
PFR30V45CTB	MOS Schottky	V	2	30	45	0.47	500	100	TO-263AB	280	-65~150
PFR40L45CTF	MOS Schottky	L	2	40	45	0.52	500	100	ITO-220AB	280	-65~150
PFR4045CTF	MOS Schottky	S	2	40	45	0.64	500	100	ITO-220AB	250	-65~150
PFR40V45CTF	MOS Schottky	V	2	40	45	0.5	500	100	ITO-220AB	350	-65~150
PFR40L45CT	MOS Schottky	L	2	40	45	0.52	500	100	TO-220AB	280	-65~150
PFR4045CT	MOS Schottky	S	2	40	45	0.64	500	100	TO-220AB	250	-65~150
PFR40V45CT	MOS Schottky	V	2	40	45	0.5	500	100	TO-220AB	350	-65~150
PFR40L45PT	MOS Schottky	L	2	40	45	0.52	500	100	TO-247AB	280	-65~150
PFR4045PT	MOS Schottky	S	2	40	45	0.64	500	100	TO-247AB	250	-65~150
PFR40V45PT	MOS Schottky	V	2	40	45	0.5	500	100	TO-247AB	350	-65~150
PFR40L45CTI	MOS Schottky	L	2	40	45	0.52	500	100	TO-262AA	280	-65~150
PFR4045CTI	MOS Schottky	S	2	40	45	0.64	500	100	TO-262AA	250	-65~150
PFR20V45CT	MOS Schottky	V	2	20	45	0.47	500	100	TO-220AB	180	-65~150
P20L45E	MOS Schottky	L	2	20	45	0.5	300	100	TO-251	180	-65~150
P20L45D	MOS Schottky	L	2	20	45	0.5	300	100	TO-252	180	-65~150
PFR20L45CTI	MOS Schottky	L	2	20	45	0.5	500	100	TO-262AA	180	-65~150
PFR2045CTI	MOS Schottky	S	2	20	45	0.54	500	100	TO-262AA	150	-65~150
PFR20V45CTI	MOS Schottky	V	2	20	45	0.47	500	100	TO-262AA	180	-65~150
PFR20L45CTB	MOS Schottky	L	2	20	45	0.5	500	100	TO-263AB	180	-65~150
PFR2045CTB	MOS Schottky	S	2	20	45	0.54	500	100	TO-263AB	150	-65~150
PFR20V45CTB	MOS Schottky	V	2	20	45	0.47	500	100	TO-263AB	180	-65~150
P20V45SP	MOS Schottky	V	1	20	45	0.52	300	20	TO-277	275	-65~150
PFR30A45CTF	MOS Schottky	A	2	30	45	0.54	500	100	ITO-220AB	250	-65~150
PFR30L45CTF	MOS Schottky	L	2	30	45	0.52	500	100	ITO-220AB	250	-65~150
PFR3045CTF	MOS Schottky	S	2	30	45	0.55	500	100	ITO-220AB	200	-65~150
PFR30V45CTF	MOS Schottky	V	2	30	45	0.47	500	100	ITO-220AB	280	-65~150
PFR30A45CT	MOS Schottky	A	2	30	45	0.54	500	100	TO-220AB	250	-65~150
PFR30L45CT	MOS Schottky	L	2	30	45	0.52	500	100	TO-220AB	250	-65~150
PFR3045CT	MOS Schottky	S	2	30	45	0.55	500	100	TO-220AB	200	-65~150
PFR30V45CT	MOS Schottky	V	2	30	45	0.47	500	100	TO-220AB	280	-65~150
PFR30A45PT	MOS Schottky	A	2	30	45	0.54	500	100	TO-247AB	250	-65~150
PFR3045PT	MOS Schottky	S	2	30	45	0.6	500	100	TO-247AB	200	-65~150
PFR10L45CTF	MOS Schottky	L	2	10	45	0.48	500	100	ITO-220AB	150	-65~150
PFR10V45CTF	MOS Schottky	V	2	10	45	0.46	500	100	ITO-220AB	200	-65~150
PFR1045CT	MOS Schottky	S	2	10	45	0.55	500	100	TO-220AB	90	-65~150
PFR10L45CT	MOS Schottky	L	2	10	45	0.48	500	100	TO-220AB	150	-65~150
PFR10V45CT	MOS Schottky	V	2	10	45	0.46	500	100	TO-220AB	200	-65~150
PFR1045CTI	MOS Schottky	S	2	10	45	0.55	500	100	TO-262AA	90	-65~150
PFR10L45CTI	MOS Schottky	L	2	10	45	0.48	500	100	TO-262AA	150	-65~150
PFR10V45CTI	MOS Schottky	V	2	10	45	0.46	500	100	TO-262AA	200	-65~150
PFR1045CTB	MOS Schottky	S	2	10	45	0.55	500	100	TO-263AB	90	-65~150
PFR10L45CTB	MOS Schottky	L	2	10	45	0.48	500	100	TO-263AB	150	-65~150
PFR10V45CTB	MOS Schottky	V	2	10	45	0.46	500	100	TO-263AB	200	-65~150
P10L45SP	MOS Schottky	L	1	10	45	0.5	500	100	TO-277	160	-65~150
P10V45SP	MOS Schottky	V	1	10	45	0.47	300	75	TO-277	275	-65~150
PFS15L45	MOS Schottky	L	1	15	45	0.52	300	100	DO-201AD	250	-65~150
P15L45SP	MOS Schottky	L	1	15	45	0.53	500	100	TO-277	275	-65~150
PFR20L45CTF	MOS Schottky	L	2	20	45	0.5	500	100	ITO-220AB	180	-65~150
PFR2045CTF	MOS Schottky	S	2	20	45	0.54	500	100	ITO-220AB	150	-65~150
PFR20V45CTF	MOS Schottky	V	2	20	45	0.47	500	100	ITO-220AB	180	-65~150
PFR20L45CT	MOS Schottky	L	2	20	45	0.5	500	100	TO-220AB	180	-65~150
PFR2045CT	MOS Schottky	S	2	20	45	0.54	500	100	TO-220AB	150	-65~150
PFB3M40	MOS Schottky	M	1	3	40	0.46	200	40	DO-15	150	-40~150
SR340H	Planar Schottky	S	1	3	40	0.55	500	--	DO-201AD	80	-55~125
P3L40A	MOS Schottky	L	1	3	40	0.5	500	100	SMA	50	-65~150
P3L40F-A	MOS Schottky	L	1	3	40	0.5	500	@100℃ 40	SMAF-A	50	-65~150
P3V40F-A	MOS Schottky	V	1	3	40	0.44	500	75	SMAF-A	100	-65~150
PFS5A40	MOS Schottky	A	1	5	40	0.5	500	100	DO-201AD	150	-65~150
PFS5L40	MOS Schottky	L	1	5	40	0.47	500	100	DO-201AD	150	-65~150
SR540H	Planar Schottky	S	1	5	40	0.55	500	50 @100℃	DO-201AD	150	-55~125
P5L40F-A	MOS Schottky	L	1	5	40	0.5	500	75	SMAF-A	100	-65~150
P5L40B	MOS Schottky	L	1	5	40	0.51	500	@100℃ 30	SMB	120	-65~150
P3L45F-A	MOS Schottky	L	1	3	45	0.53	500	@100℃ 40	SMAF-A	50	-65~150
SS345F	Planar Schottky	S	1	3	45	0.52	500	20 @100℃	SMAF-A	80	-55~155
PFS5L45	MOS Schottky	L	1	5	45	0.51	500	100	DO-201AD	120	-65~150
PFS5V45	MOS Schottky	V	1	5	45	0.46	500	100	DO-201AD	200	-65~150
P5L45F-A	MOS Schottky	L	1	5	45	0.51	300	35	SMAF-A	150	-65~150
P5L45B	MOS Schottky	L	1	5	45	0.51	500	@100℃ 40	SMB	120	-65~150
P5V45SP	MOS Schottky	V	1	5	45	0.48	300	75	TO-277	100	-65~150
P8L45SP	MOS Schottky	L	1	8	45	0.56	300	75	TO-277	150	-65~150
PFS10L45	MOS Schottky	L	1	10	45	0.5	500	100	DO-201AD	200	-65~150
PFR1045CTF	MOS Schottky	S	2	10	45	0.55	500	100	ITO-220AB	90	-65~150
P5L30F-A	MOS Schottky	L	1	5	30	0.48	500	75	SMAF-A	50	-65~150
P15L30SP	MOS Schottky	L	1	15	30	0.48	300	100	TO-277	200	-65~150
PFR30L30CTF	MOS Schottky	L	2	30	30	0.47	1000	150	ITO-220AB	280	-65~150
PFR30V30CTF	MOS Schottky	V	2	30	30	0.44	1000	150	ITO-220AB	280	-65~150
PFR30L30CT	MOS Schottky	L	2	30	30	0.47	1000	150	TO-220AB	280	-65~150
PFR30V30CT	MOS Schottky	V	2	30	30	0.44	1000	150	TO-220AB	280	-65~150
PFR30L30CTI	MOS Schottky	L	2	30	30	0.47	1000	150	TO-262AA	280	-65~150
PFR30V30CTI	MOS Schottky	V	2	30	30	0.44	1000	150	TO-262AA	280	-65~150
PFR30L30CTB	MOS Schottky	L	2	30	30	0.47	1000	150	TO-263AB	280	-65~150
PFR30V30CTB	MOS Schottky	V	2	30	30	0.44	1000	150	TO-263AB	280	-65~150
PFR40L30CTF	MOS Schottky	L	2	40	30	0.48	1000	150	ITO-220AB	250	-65~150
PFR40V30CTF	MOS Schottky	V	2	40	30	0.45	1000	150	ITO-220AB	350	-65~150
PFR40L30CT	MOS Schottky	L	2	40	30	0.48	1000	150	TO-220AB	250	-65~150
PFR40V30CT	MOS Schottky	V	2	40	30	0.45	1000	150	TO-220AB	350	-65~150
PFR40L30CTI	MOS Schottky	L	2	40	30	0.48	1000	150	TO-262AA	250	-65~150
PFR40V30CTI	MOS Schottky	V	2	40	30	0.45	1000	150	TO-262AA	350	-65~150
PFR40L30CTB	MOS Schottky	L	2	40	30	0.48	1000	150	TO-263AB	250	-65~150
PFR40V30CTB	MOS Schottky	V	2	40	30	0.45	1000	150	TO-263AB	350	-65~150
P2V40A	MOS Schottky	V	1	2	40	0.42	1000	50	SMA	50	-65~150
PFB3L40	MOS Schottky	L	1	3	40	0.52	500	100	DO-15	50	-65~150

整流器

产品

联系人

地点

有任何问题吗？

给我们发电子邮件

新产品

SMAF-A

整流器

金属氧化物整流器

SLVF萧特基整流器/HPTR

SMAF-A

Products

Applications

Support

News

Investor Information

About Us

Contact

Stay Connected

产品

应用范围

技术支援

最新消息

投资者资讯

关于我们

联系我们

保持联系

產品介紹

應用範圍

技術支援

最新消息

投資者資訊

關於我們

聯絡我們

保持聯繫
